船形開關-3M Series
[ 時間:2016-05-17 點擊: ]
產品類型:扁平框架安裝微型船形開關
規格參數
功率: Dependent upon contact material.
機械壽命: 40,000 make – and – break cycles.
接觸電阻: 10mΩ max .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
絕緣電阻: 1,000MΩ min.
絕緣強度: 1,000V RMS min@sea level.
工作溫度范圍: -30℃ to 85℃.
使用材質
外殼: Diallyl phthalate(DAP) (UL94V-0).
翹板: Nylon, black std.
銅頭: Brass or zinc, nickel plated.
框架: Stainless steel.
支撐支架:Brass,tin plated.
端子/彈片: Brass,with Silver or gold plated .

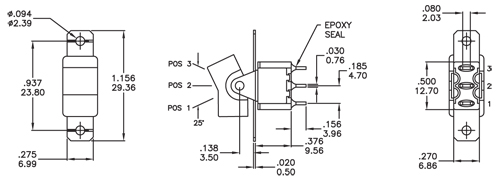

3M基本尺寸
船形開關-3M Series
