產品分類：超小型防水船形開關

規格參數
額定值: 120VAC 3A/250VAC 1A
功率：Dependent upon contact material
機械壽命: 30,000 make – and – break cycles.
接觸電阻: 20Ωmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
絕緣電阻抗: 1,000MΩ min.
絕緣強度: 1,000V RMS min@sea level.
工作溫度范圍: -30℃ to 85℃.

使用材質
外殼&銅頭: Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
翹板: Nylon, black std.Internal O-ring seal standard with all actuators.
支撐支架: Brass or steel, tin plated.
端子/彈片: Silver or gold plated copper alloy

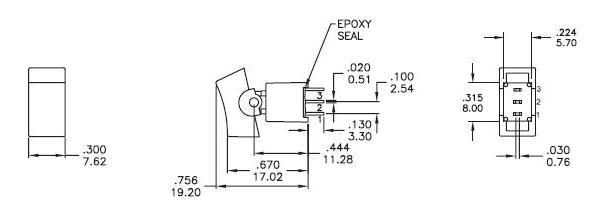

4A 基本尺寸




防水船形開關-4A Series
